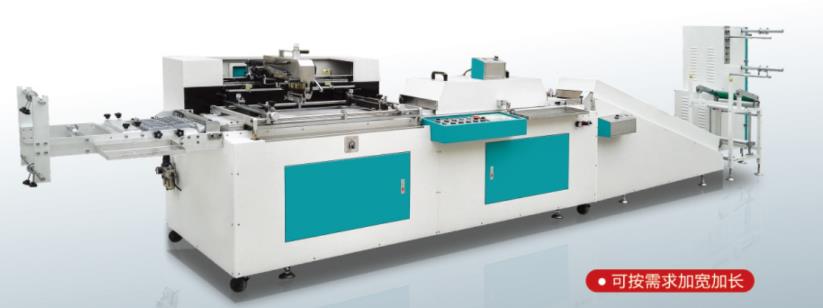

HY-100D Automatic Single Color Screen Printing Machine

HY-100D Automatic Single Color Screen Printing Machine

The transmission principle is full servo control, and the operation is very stable

Long body, reducing the number of times of glue application on the conveyor belt

Two ovens, fast drying, high printing output

Large printing area, fast print head running speed (35 times/min)

The length of the drawstring can reach 6 meters

It is effective for special printing such as thick version or snow gauze ribbon

Suitable for special elastic belts, cotton belts, black belts with white printing, wide non-woven fabrics, etc.

0.00
0.00


The transmission principle is full servo control, and the operation is very stable

Long body, reducing the number of times of glue application on the conveyor belt

Two ovens, fast drying, high printing output

Large printing area, fast print head running speed (35 times/min)

The length of the drawstring can reach 6 meters

It is effective for special printing such as thick version or snow gauze ribbon

Suitable for special elastic belts, cotton belts, black belts with white printing, wide non-woven fabrics, etc.

The transmission principle is full servo control, and the operation is very stable
Long body, reducing the number of times of glue application on the conveyor belt
Two ovens, fast drying, high printing output
Large printing area, fast print head running speed (35 times/min)
The length of the drawstring can reach 6 meters
It is effective for special printing such as thick version or snow gauze ribbon
Suitable for special elastic belts, cotton belts, black belts with white printing, wide non-woven fabrics, etc.


Usage:

Apply to label ribbon,elastic tape,film,organza,slice,hat brim tape.Be good at double sides precise printing,black material with letter,pomp,round tape,cotton tape and film etc.


Model HY-100D -30CM HY-100D -60CM HY-100D -100CM
Printing table area 30cmx70cm 60cmx80cm 100cmx150cm
Max printing speed 760m/h 760m/h 720m/h
Max.Power 8kw/70A/380V 12kw 14kw
L*W*H 7.1x1.2x1.5m 7.6x1.2x1.5m 8.2x1.2x1.5m
KG 1000 1200 1500
