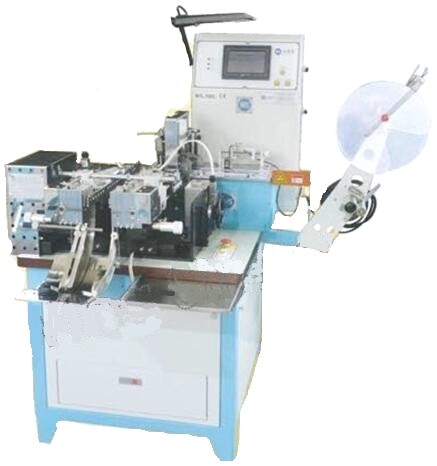

HY-586U/HY-586UR Ultrasonic Multi Function Label Cutting and Folding Machine

HY-586U/HY-586UR Ultrasonic Multi Function Label Cutting and Folding Machine

Model HY-586U model is a multi-functional label cutting machine with ultrasonic function and hot/cold cut function. This machine is suitable for printed and woven label.

￥ 0.00
0.00


Model HY-586U model is a multi-functional label cutting machine with ultrasonic function and hot/cold cut function. This machine is suitable for printed and woven label.

 Model HY-586U model is a multi-functional label cutting machine with ultrasonic function and hot/cold cut function.
This machine is suitable for printed and woven label.

This machine can do ultrasonic cut for end fold, mitre and center fold.

With the computer control system, the setting for the operation will

be easy and simply.


Specifications
Speed: 0-200 pcs/min
Dimension:1537L×750W×1470H
Weight: 450KG
Power: 220V AC
Motor: 1/2HP 50/60Hz
Matt: 3000W

Folding Method:
End Fold
Mitre Fold

Cutting Method:

1. Ultrasonic Cut

2. Cold Cut (Option)

3. Hot Cut (Option)

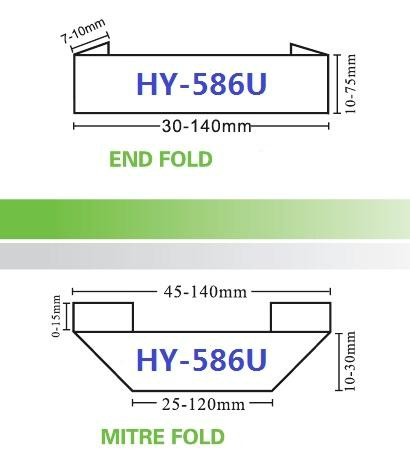

Allowable Unfolded Size for End Fold Narrowest: 10mm

Widest: 75mm

Shortest: 40mm

Longest: 150mm

Allowable Unfolded Size for Mitre Fold Narrowest: 10mm

Widest: 30mm

Shortest: 45mm

Longest: 150mm

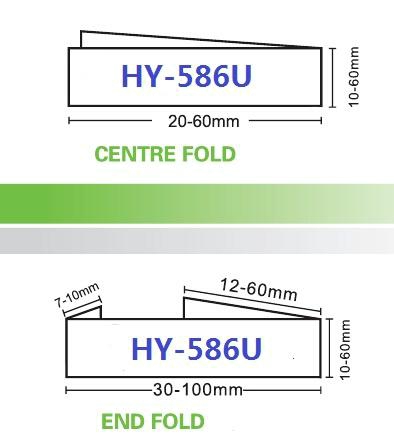

Allowable Unfolded Size for Center Fold Narrowest: 10mm

Widest: 60mm

Shortest: 40mm

Longest: 120mm

Allowable Unfolded Size for End Fold Narrowest: 10mm

Widest: 60mm

Shortest: 49mm

Longest: 150mm
